MFU Multi Flow Unit
MFU Multi Flow Unit
Features

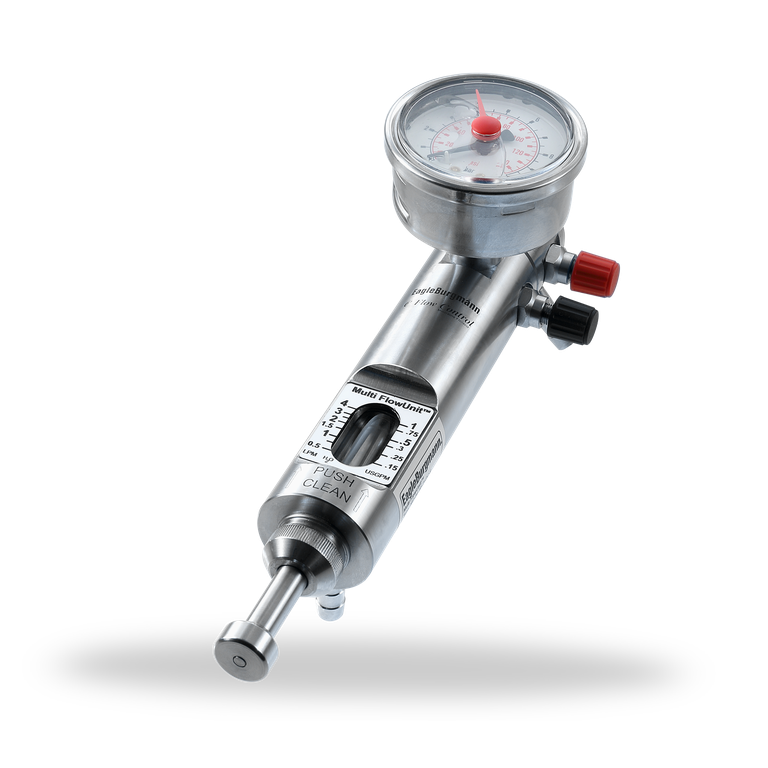

The Multi Flow Unit (MFU) is an economical sealing water management solution for reducing operating costs through minimized rates of fresh water and waste water. The MFU series is available in three basic versions:
MFU-MP: for single seals with flush
MFU-MQ: for seals with quench
MFU-MD: for double seals
These are available for different indicated flow ranges and with numerous system components (e.g. mounting supports, stands, hoses, alarm sensors, etc.) and other material combinations.
Circulation in accordance with API 682 Plan 32, Plan 54, Plan 62.
MFU-MP: for single seals with flush
MFU-MQ: for seals with quench
MFU-MD: for double seals
These are available for different indicated flow ranges and with numerous system components (e.g. mounting supports, stands, hoses, alarm sensors, etc.) and other material combinations.
Circulation in accordance with API 682 Plan 32, Plan 54, Plan 62.
Advantages
- Economical supply system
- Optimized sealing water management
- Reduced costs for fresh water and waste water
- Easy operation and cleaning even during operation
- Safe operation even in case of pressure changes
- Quick detection of seal failures
Operating range
Max. operating pressure: 25 bar (363 PSI)
Max. operating temperature: 85 °C (185 °F)
Indicated flow range (pressure drop):
0.1 ... 2 l/min. (≤0.1 bar (1.5 PSI) at 2 l/min)
0.5 ... 4 l/min. (0.1 bar (1.5 PSI) at 4 l/min.)
1 ... 8 l/min. (≥1 bar (15 PSI) at 8 l/min.)
8 ... 15 l/min. (available on request)
Max. operating temperature: 85 °C (185 °F)
Indicated flow range (pressure drop):
0.1 ... 2 l/min. (≤0.1 bar (1.5 PSI) at 2 l/min)
0.5 ... 4 l/min. (0.1 bar (1.5 PSI) at 4 l/min.)
1 ... 8 l/min. (≥1 bar (15 PSI) at 8 l/min.)
8 ... 15 l/min. (available on request)
Recommended applications
- Pulp and paper industry
- Food and beverage industry
- Water and waste water technology
- Chemical industry
- Process industry
Functional description
The seal water control unit MFU is designed to enable easy adjustment of the rate of sealing water (flush, quench or buffer water) on rotary machines to the optimum and lowest level of water consumption necessary for the seal's safe operation. Key parameters such as pressure and flow can be permanently monitored for early detection of any malfunctions. The buffer medium is supplied by an external system.
Product variants
| Designation | MFU-MP | MFU-MQ | MFU-MD |
|---|---|---|---|
| Pressure gauge | ■ | ■ | |
| Pressure control valve | ■ | ||
| Flow rate (l/min.) | 1 ... 8 | 1 ... 8 | 1 ... 8 |
| Allowable pressure | 25 bar (363 PSI) (*) | 25 bar (363 PSI) (*) | |
| Allowable temperature | 85 °C (185 °F) | 85 °C (185 °F) | 85 °C (185 °F) |
| Accuracy | ±3 ... 5 % | ±3 ... 5 % | ±3 ... 5 % |
| Housing material | AISI 304 | AISI 304 | AISI 304 |
| Metal parts | AISI 316 AISI 304 |
AISI 316 AISI 304 |
AISI 316 AISI 304 |
| Sight-glass | Grilamid® TR 55 | Grilamid® TR 55 | Grilamid® TR 55 |
| Seals | NBR | NBR | NBR |
| Process connections | Hose nozzles for 10 mm hose |
Hose nozzles for 10 mm hose |
Hose nozzles for 10 mm hose |
Other versions with alternative connections, higher pressure and/or higher flow rates on request. (*) Depending on range of selected pressure gauge (available range 10, 16, 25 bar)
Similar products
BestFlow
The EagleBurgmann BestFlow is a temperature-controlled "money-saving valve" for double seals on which the barrier water connection extends directly into the seal chamber, e.g. Cartex-DN.
Contact
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
