Fibre gasket sheets
Buratherm T 9544/T
Buratherm T 9544/T
Features

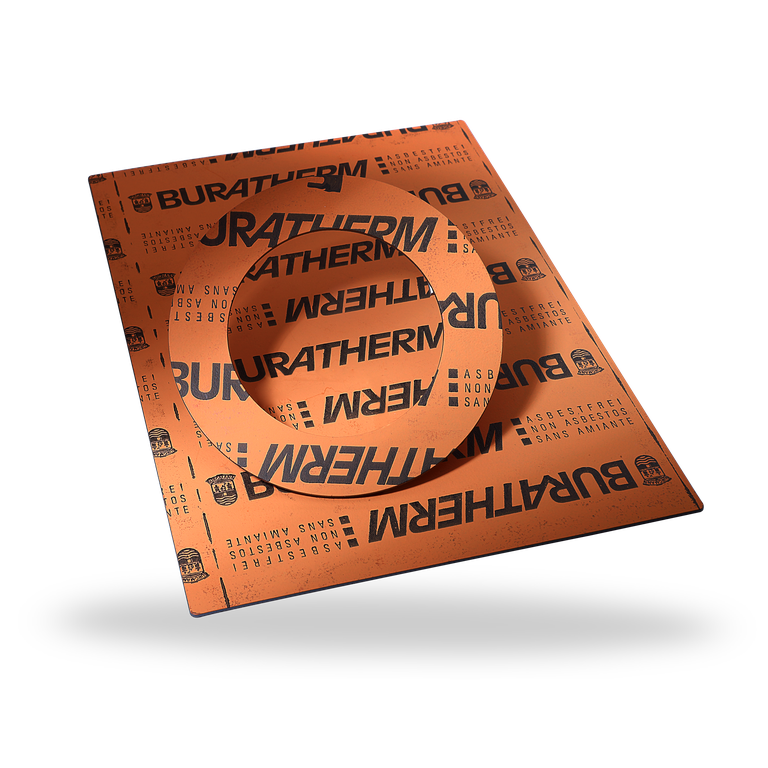

Buratherm T 9544/T is a gasket sheet made from graphite and high-grade aramid fibers with a special anti-stick surface coating.
Advantages
- The most highly adaptable of all the fiber gaskets due to its low density
- Easy handling
- Easy to process
Operating range
Pressure: p = 150 bar
Temperatur
RZ = 20 - 60 µm
Resistant to oils, water, steam, weak acid and lyes. Particularly suitable for steam applications.
Temperatur
- Continuous operation:
t = -100 °C ... +350 °C - Transient peak temperature:
t = +380 °C - Steam: tmax = +360 °C
RZ = 20 - 60 µm
Resistant to oils, water, steam, weak acid and lyes. Particularly suitable for steam applications.
Recommended applications
Industries
- Process industry
- Chemical industry
- Power plant technology
- Water and waste water technology
- Building services engineering
Variants
9544/TP (sheets)
9544/TR (rings and cuts)
9544/TS (segments)
9544/TR (rings and cuts)
9544/TS (segments)
Forms of supply
- Sheets:
2.000 x 1.500 mm
0.5 / 1.0 / 1.5 / 2.0 / 3.0 mm thick - Rings and molded parts:
Standard dimensions as per DIN EN 1514-1 or ASME B16.21
Similar products
Burasil Basic 9544/B
Burasil Basic 9544/B is a soft gasket made from high-quality aramid fibers, fillers and NBR rubber (nitrile butadiene rubber), with anti-stick coating on one side. Burasil Basic 9544/B is a standard gasket with a balanced mixture of raw materials for flange and flange-like connections in the medium pressure and temperature range.
Burasil Universal 9544/U
The Burasil Universal 9544/U is a soft gasket made from highgrade aramid fibers and special functional fillers with NBR rubber (nitrile butadiene rubber). The surfaces of Burasil Universal 9544/U gaskets are coated with PTFE on both sides for ease of removal. The Burasil Universal 9544/U is a genuine all-rounder and is particularly suitable for use in sealed connections subject to high thermal and mechanical stresses.
