SPT6
Temperature indicator
SPT6
Temperature indicator
SPT6
Temperature indicator
Features
The measuring unit of the SPT6000A4 range is used to visually monitor the operating temperature.

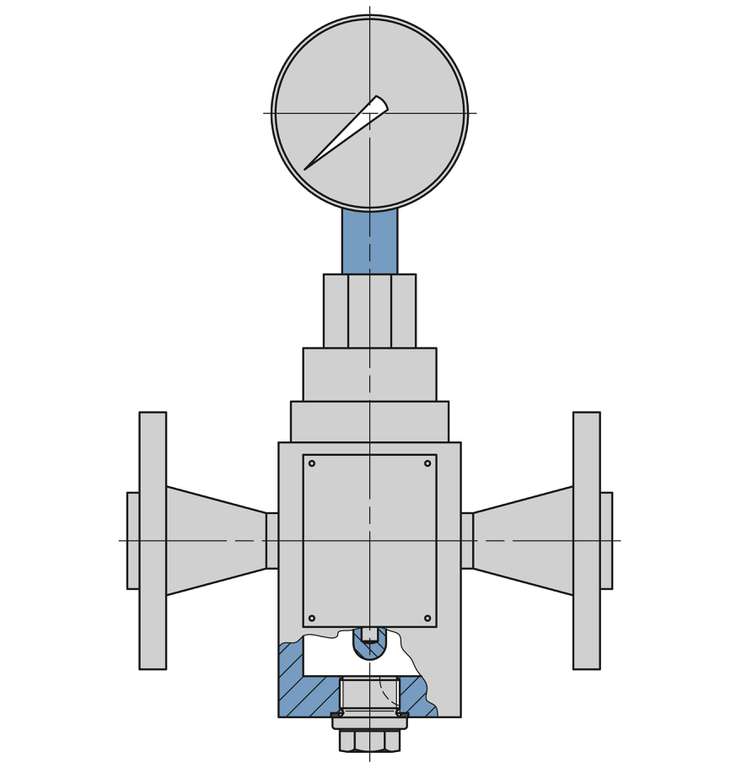

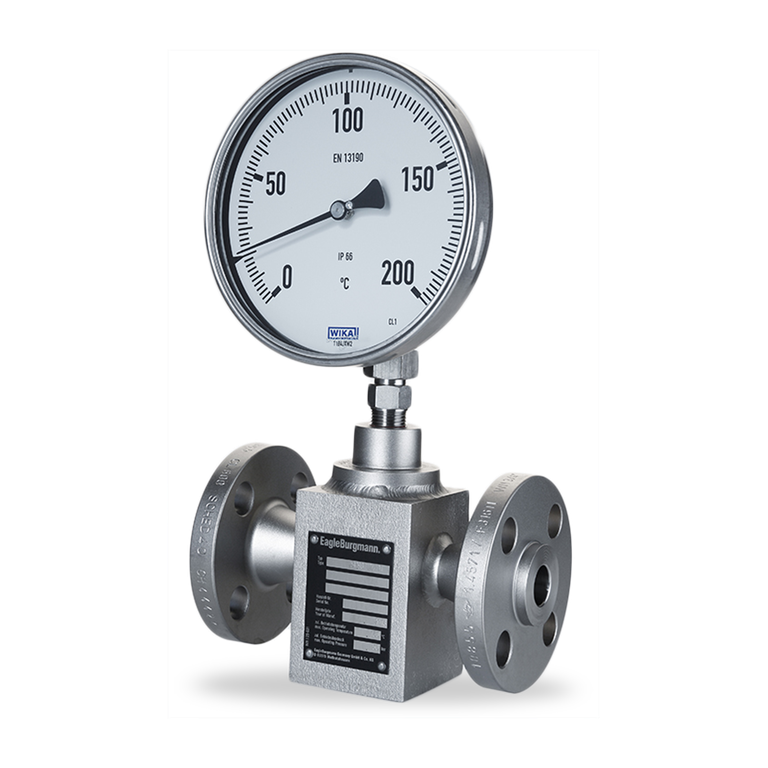

The measuring unit consists of a bi-metallic temperature gauge (NG100) with protective sleeve installed in a measuring block incl. drain connection.
The measuring unit consists of a bi-metallic temperature gauge (NG100) with protective sleeve installed in a measuring block incl. drain connection.
Advantages
- Operating limits up to 50 bar / 200 °C
(725 PSI / 392 °F) (design parameters) - Temperature indicating range
up to 200 °C (392 °F) - Wetted parts: Stainless steel 316/316L for high resistance to corrosive media
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 1CW-FL
- API 682 4th ed. Cat. 2/3 - 2CW-CW
- API 682 4th ed. Cat. 2/3 - 2CW-CS
- API 682 4th ed. Cat. 2/3 - 3CW-FB
- API 682 4th ed. Cat. 2/3 - 3CW-BB
- API 682 4th ed. Cat. 2/3 - 3CW-FF
- API 682 4th ed. Cat. 1 - 1CW-FX
- API 682 4th ed. Cat. 1 - 2CW-CW
- API 682 4th ed. Cat. 1 - 3CW-FB
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Product variants
| Designation | SPT6000A4 | SPT6000A4 |
|---|---|---|
| Process connections | Flange 3/4", 600 lbs | Flange 3/4", 600 lbs |
| Drain connection | G 1/2" | G 1/2" |
| Allowable pressure1) | 50 bar (725 PSI) | 50 bar (725 PSI) |
| Temperature range | 0 °C … +120 °C (+32 °F … +248 °F) |
0 °C … +200 °C (+32 °F … +392 °F) |
| Wetted parts | 316/316L | 316/316L |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
