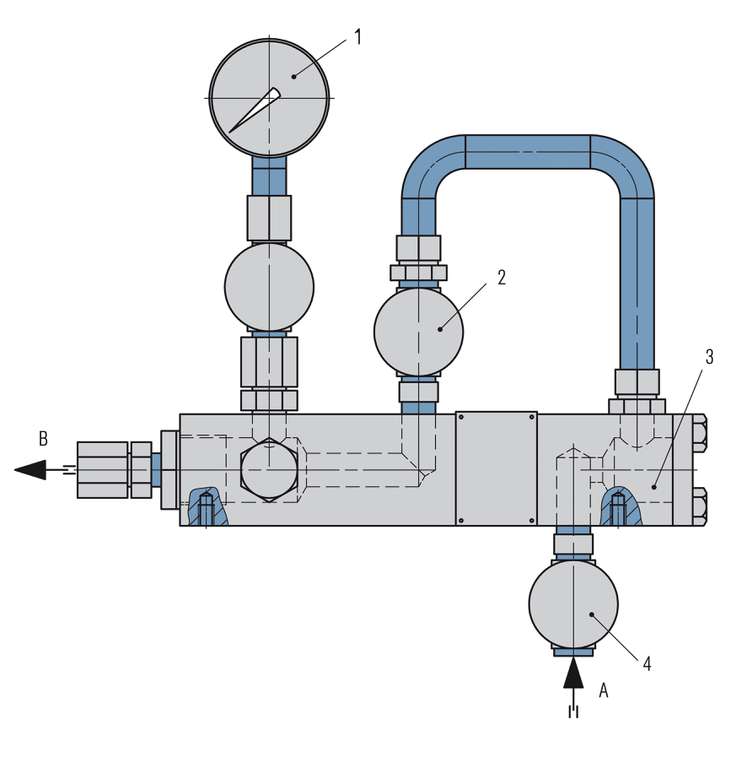

1 Pressure indicator
2 Needle valve
3 Integral filter
4 Valve
A From external source
B To mechanical seal
1 Pressure indicator
2 Needle valve
3 Integral filter
4 Valve
A From external source
B To mechanical seal
SPX6
Flush unit
Features

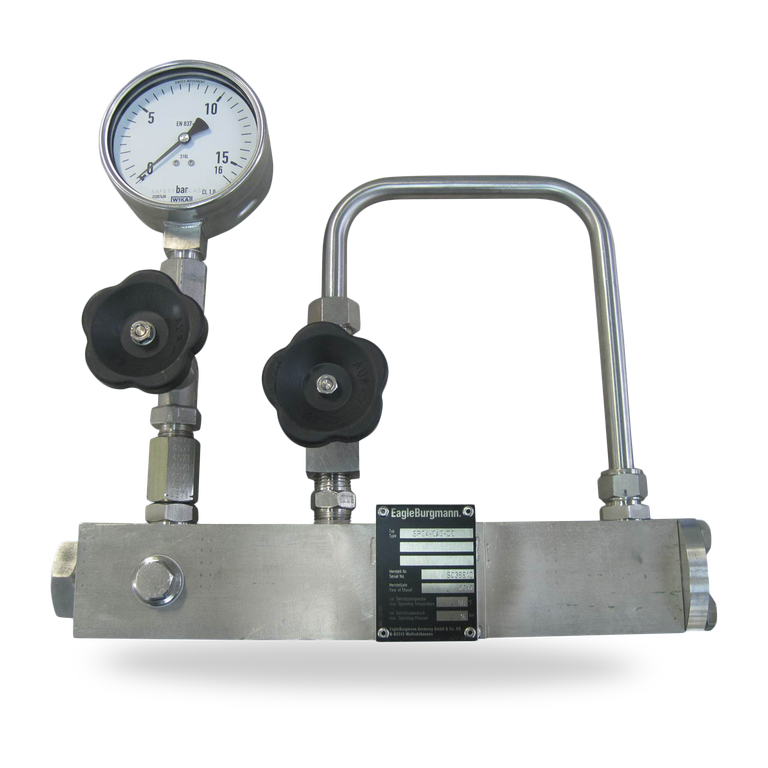

The EagleBurgmann flush unit of the SPX6000A4 range consist of a manifold with integrated inline filter supplied together with a needle valve and pressure gauge. Optional available with temperature gauge and/or flow indicator. The unit is used to control the flushing of a mechanical seal.
Advantages
- Compact design due to integral filter
- Modular concept - optional monitoring equipment available
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 1CW-FL
- API 682 4th ed. Cat. 2/3 - 2CW-CW
- API 682 4th ed. Cat. 2/3 - 2CW-CS
- API 682 4th ed. Cat. 2/3 - 3CW-FB
- API 682 4th ed. Cat. 2/3 - 3CW-BB
- API 682 4th ed. Cat. 2/3 - 3CW-FF
- API 682 4th ed. Cat. 1 - 1CW-FX
- API 682 4th ed. Cat. 1 - 2CW-CW
- API 682 4th ed. Cat. 1 - 3CW-FB
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Functional description
The SPX6000A4 flush unit continuously supplies flushing media from an external source to the mechanical seal. This plan is almost always used in combination with a throat bushing which serves as a throttle device to maintain a higher pressure in the stuffing box to isolate the pumped product from the seal chamber.
Recommended piping plans
Product variants
| Designation | SPX6000A4 |
|---|---|
| Allowable pressure1) | 44 bar (638 PSI) |
| Allowable temperature1) | -20 °C … +120 °C (-4 °F … +248 °F) |
| Process connections | 1/2" NPT |
| Metal parts | 316/316L |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
